Concrete manhole base 1000
NOMINAL DIMENSIONS: CONCRETE MANHOLE BASES
Circular bases Ø1,000
OPTION A (Without pins)
OPTION B (With pins)
| D. interior (mm) | Useful height (mm) | Weight (kg) | POSSIBLE CONNECTION |
|---|---|---|---|
| 1,000 | 480 | 1,050 | UP TO Ø315 PVC* |
| 580 | 1,100 | UP TO Ø400 PVC* / Ø300 Hº | |
| 800 | 1,445 | UP TO Ø500 PVC* / Ø400 Hº | |
| 1,000 | 1,950 | UP TO Ø630 PVC* / Ø600 Hº |
*For other materials, consult the corresponding salesperson
Polygonal bases Ø1,000
OPTION A (Without pins)
OPTION B (With pins)
| D. interior (mm) | Useful height (mm) | Weight (kg) | POSSIBLE CONNECTION |
|---|---|---|---|
| 1,000 | 1,200 | 2,450 | UP TO Ø700PRFV* / Ø600 Hº |
*For other materials, consult the corresponding salesperson

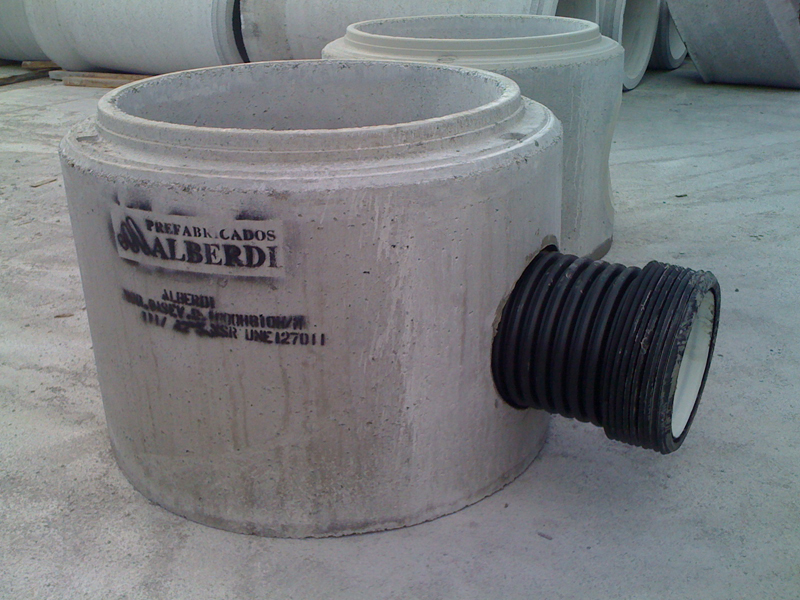

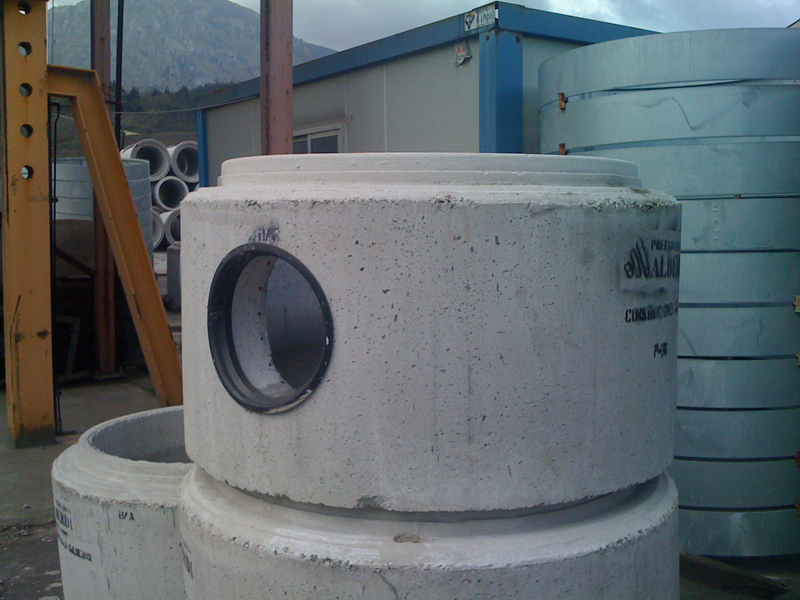

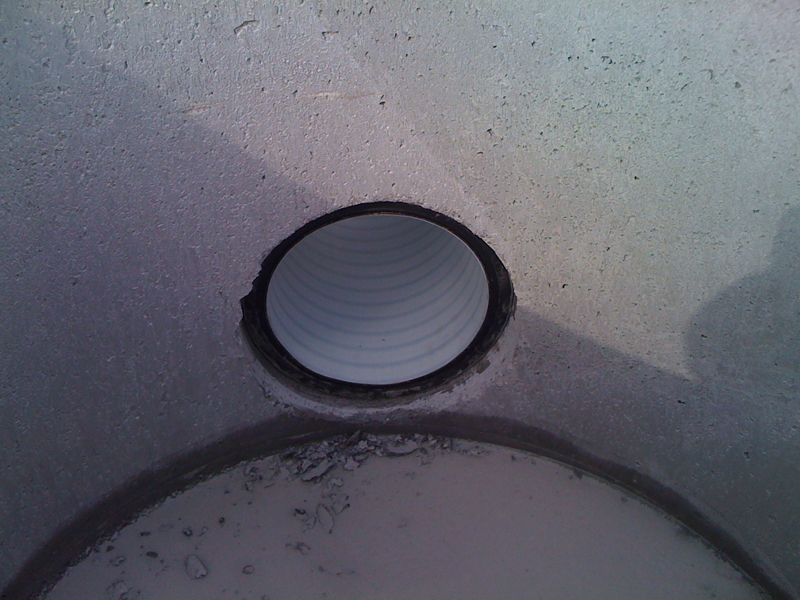

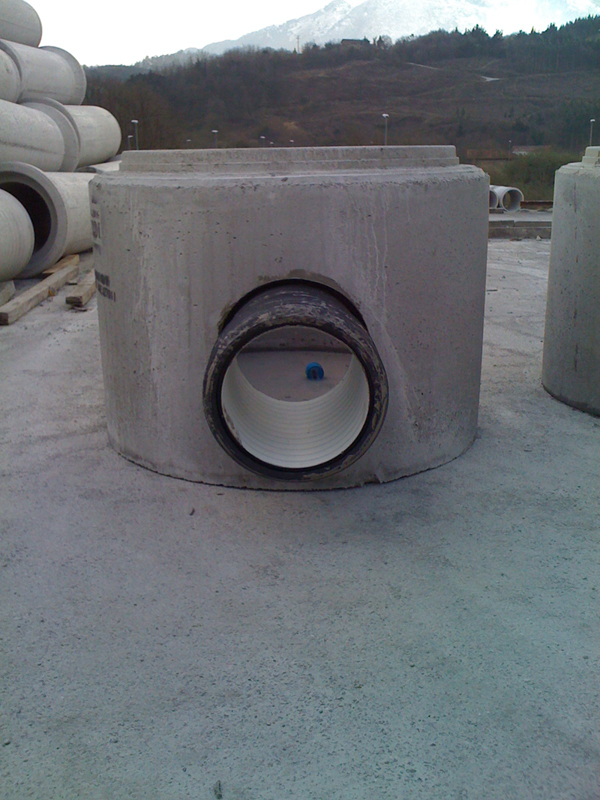

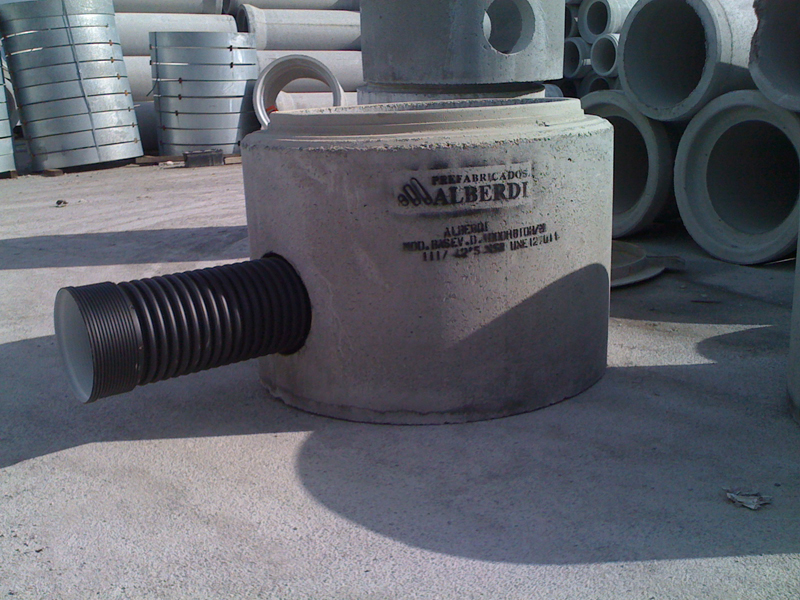

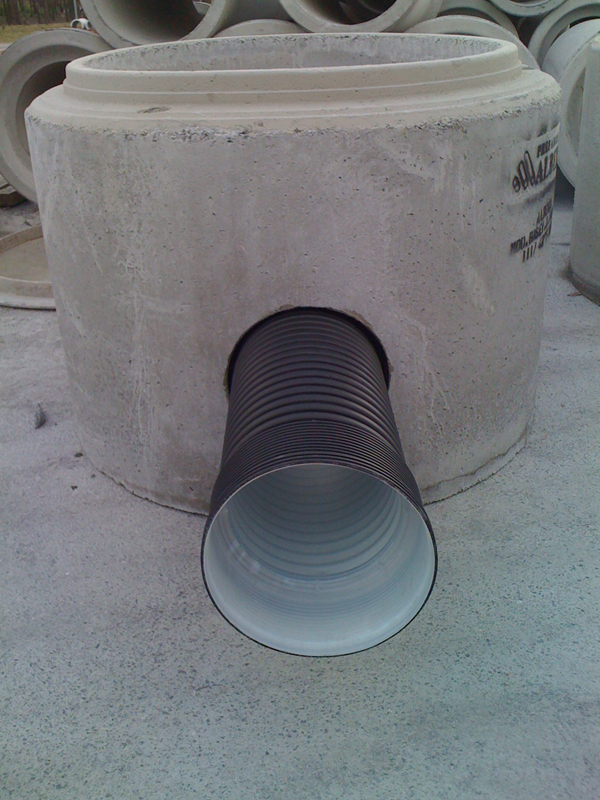

PHOTO GALLERY: CONCRETE MANHOLE BASES
